Wireless-N (802.11n) Projector Gateway Device and Wifi Presentation Adapter

Seamlessly Project Videos and Images over the Network

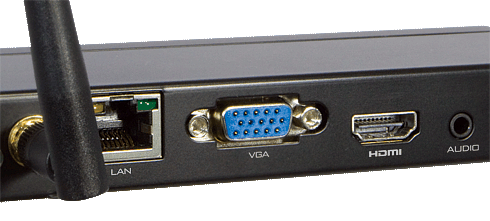

The WPG-200N Wireless Presentation / Projection Gateway is a network-media device for wirelessly transmitting video output from a PC, laptop or media device to a display (LCD or Projector). Based on IEEE 802.11n technology, the device is equipped with both VGA and HDMI video output interfaces to connect to a LCD or Projector. With its state-of-the-art hardware decoding capability, the WPG-200N can project high-definition (up to 720p) video on the screen wirelessly (802.11n, data speeds up to 150Mbps) or through wired LAN connections. It allows multiple users to freely display their presentations, images, and videos by wirelessly connecting to a projector or LCD TV without swapping cables.

Real-Time / High Quality Video & Audio Projection
The WPG-200N supports near real-time transmission of videos (up to 30fps) and images regardless of video format, codecs and resolution. The WPG-200N can be used not only for office presentation but also for commerical signage applications or even home entertainment. Home users can easily share the multimedia on the big monitor / screen without running video cables to LCD displays or projectors. Furthermore, the WPG-200N output resolution supports up to 1280x800 (WXGA+), which presents high quality display in presentation or full-motion video.

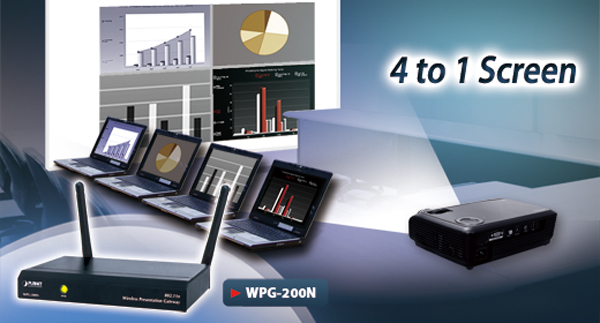

4-to-1 Split Screen Projection
The WPG-200N allows up to four PC / Laptop users to simultaneously project their screens to one display (LCD / Projector). Participants can stream presentations and videos side-by-side from their PC / Laptop to increase meeting efficiency.

Network Connectivity
The WPG-200N Display gatway is also a Wireless Access Point. The 10/100Mbps LAN port and Wifi-11n (802.11n) wireless performance ensures participants in the meeting are able to access the Internet all the time, even while wireless presentations are projecting. So long as the 10/100Mbps LAN port of the device is connected to an internet source (router / modem), participants can use the WPG-200N as a wireless router and presentation gateway simultaneously. The WPG-200N also provides a AP-Client mode functionality. This client mode function allows the WPG-200N to join the existing Access Point through Wi-Fi. This feature provides the flexibility of wireless network deployment in enterprise environment.

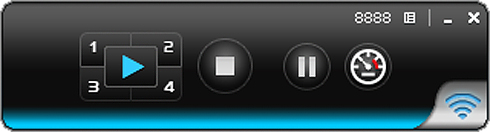

Presentation / Projection Management Application
The WPG-200N Wireless projection gateway supports 4-to-1 split screen display. Just plug the WPG-200N into the HDMI / VGA connector of the projector / display screen and start using the easy-to-use presentation management application (included with the product). The presentation management application allows four wireless users to simultaneously project their screens (presentations) on the main display screen. WPG-200N includes a full-featured license for its management application at no additional charge. The application can also be downloaded from the WPG-200N web UI.

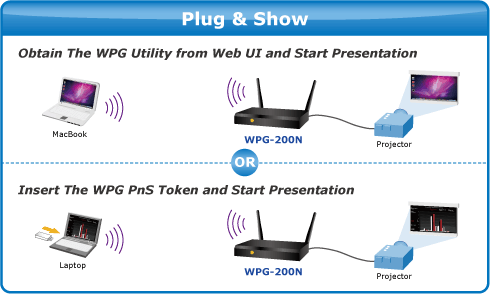

How it works: Connect the WPG-200N Gateway device to the LCD / Projector via HDMI or VGA. Connect power to the WPG-200N device via the power adapter (included in the box). Allow the WPG-200N to start and display configuration settings on the display (LCD or Projector) screen. Connect the PC / Laptop wirelessly to the wireless signal of WPG-200N (Default IP: 192.168.1.1) Download the Client Utility (Management Application) from the device and install it on the PC. Launch the management application and click the blue play button to start projecting wirelessly.
